Description

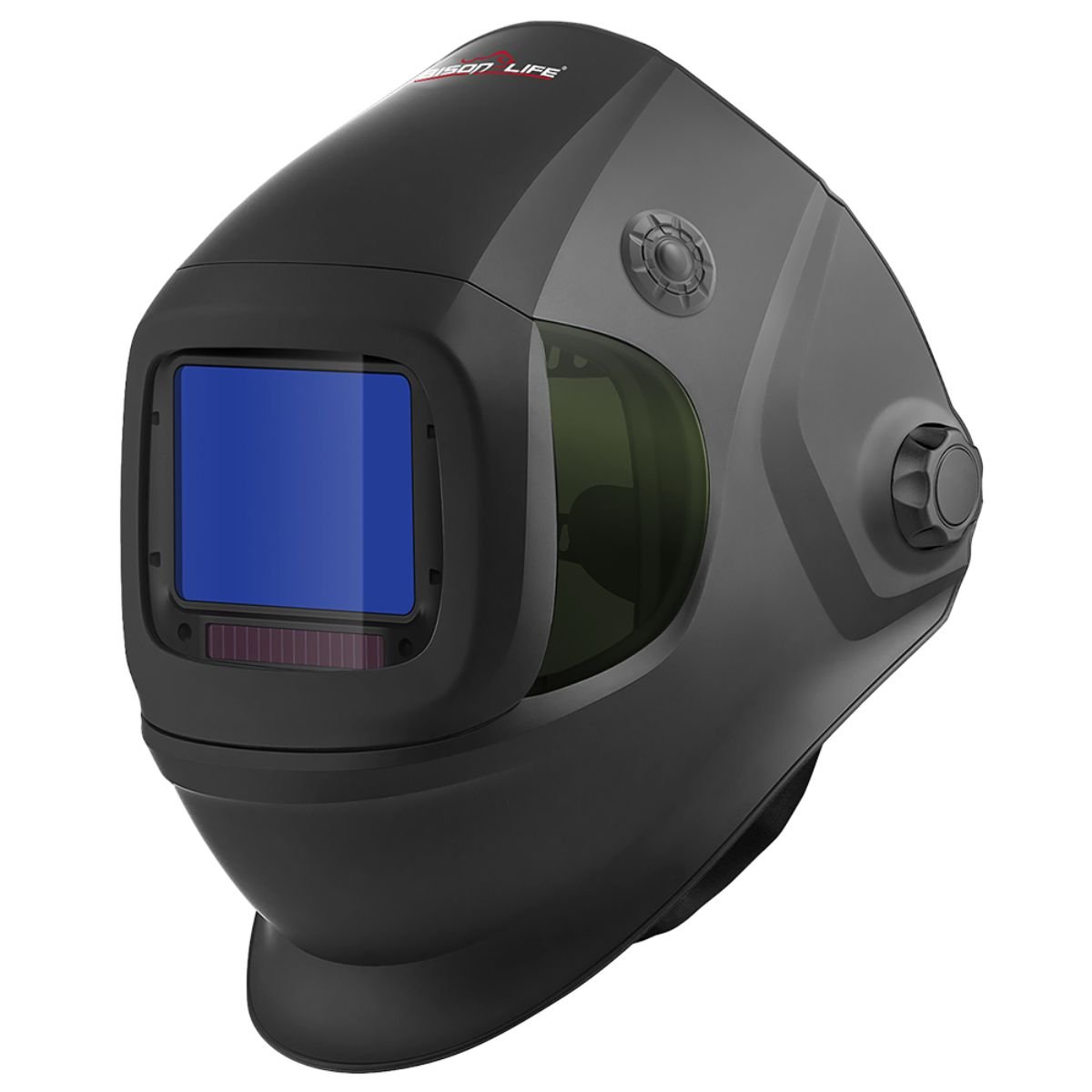

WeldVison Auto Darkening Welding Helmet with side lens with ADF900G
Applications:
MMA
MIG/MAG
TIG
Flux-Cored
Plasma
Grind
Product Specification:
| Optical Class | 1 / 1 / 1 / 1 |
| Viewing Area | 107 x 75 mm (4.21″ x 2.95″) |
| Cartridge Size | 156 x 123 x 33 mm (6.14″ x 4.84″ x 1.30″) |
| Arc Sensor | 4 |
| Light State | DIN 4 |
| Grind State | DIN 4 |
| Cutting Shade | Shade No. from 5 to 8 |
| Welding Shade | Shade No. from 9 to 13 |
| Shade Control | Internal, Digital Display Control |
| Power On / Off | Automatic On / Off |
| Sensitivity Control | Low ~ High, Digital Display Control |
| UV / IR Protection | Up to Shade DIN13 at all times |
| Power Supply | Solar cell. Battery replaceable, 2 × CR2450 lithium battery |
| Switching Time | 1/25,000 s. from Light to Dark at 55 °C (131 °F) |
| Grinding | Yes |
| Delay (Dark to Light) | 0.1 ~ 1.0 s, Digital Display Control |
| Low Amperage TIG Rated | ≥ 2 amps (DC); ≥ 2 amps (AC) |
| Operating Temp. | -5 °C ~ +55 °C (23 °F ~ 131 °F) |
| Storing Temp. | -20 °C ~ +70 °C (- 4 °F ~ 158 °F) |
| Helmet Material | High Impact Resistance Nylon |
| Total Weight | 778 g |
| Approved | CE, EN175, EN 379, EN166, ANSI Z87. l, CS A Z94.3, AS/NZS 1338.1 |
